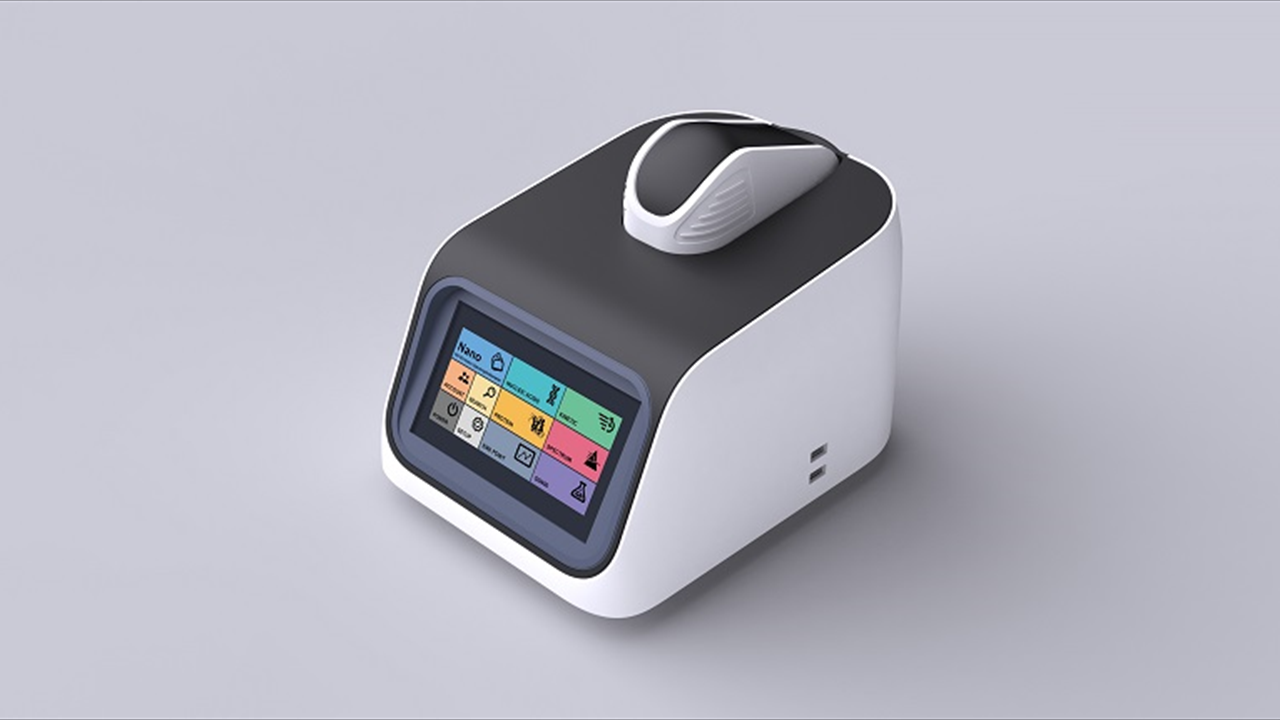

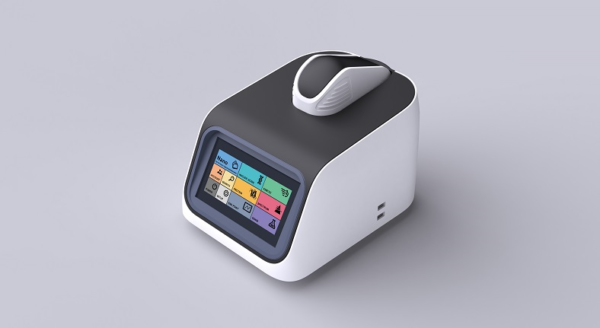

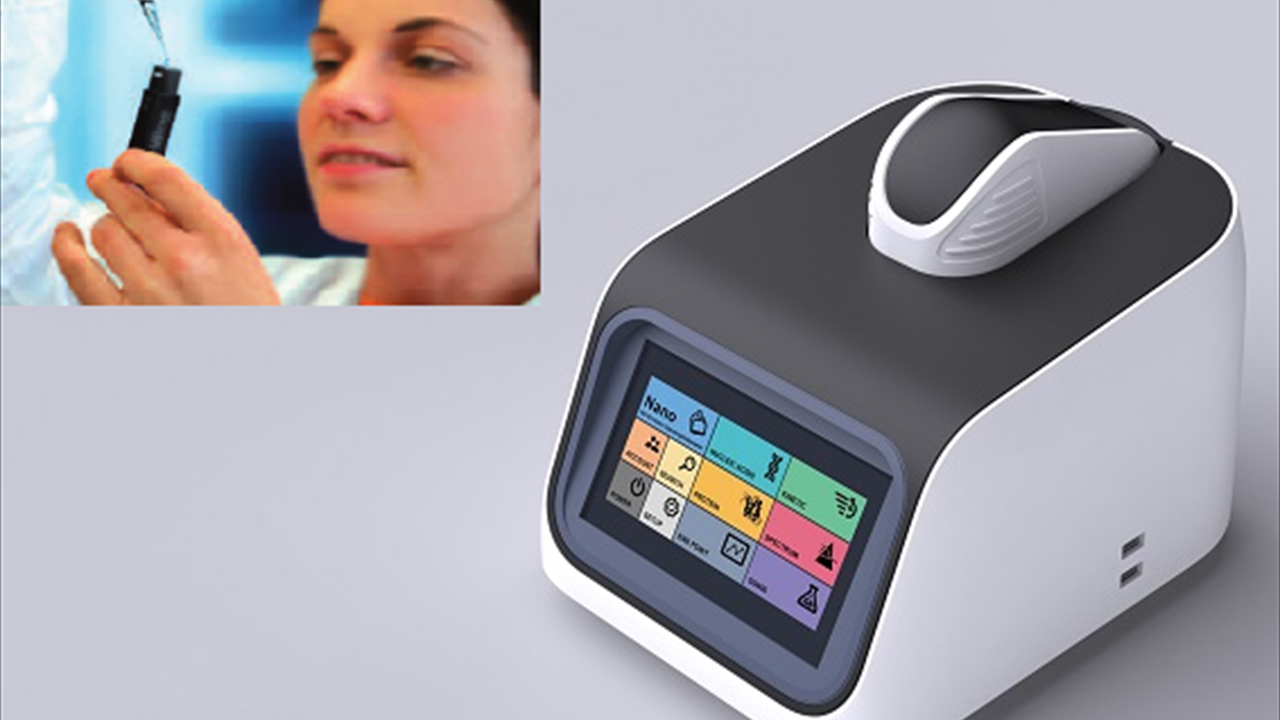

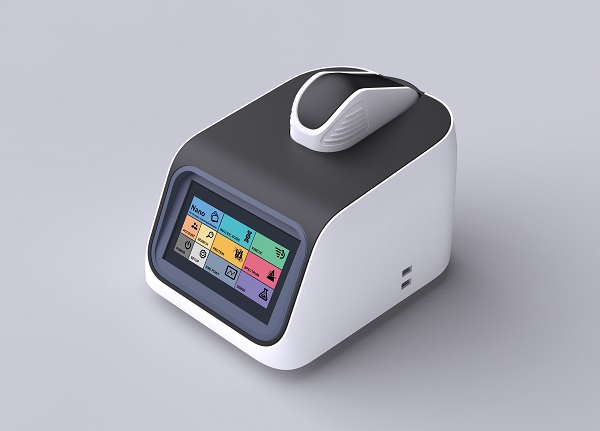

NV200 Nano-Volume Spectrophotometer

The compact NV200 Nano Volume Spectrophotometer, typically using 1 – 2µl for a measurement, is the perfect solution for DNA/RNA and Protein Analysis. The Xenon Light source, combined with a CCD Detector,  provides a fast and stable measurement response of  3 seconds. The stand-alone instrument has a built-in 7inch Colour Touch Screen with a user friendly operating system which is simple and clear to operate. The analysis of multi-functions include: Nucleic Acid, Protein, Kinetic, Spectrum Scanning, End point and OD600. The small foot print UV Visible Spectrophotometer have a wavelength range of 190 – 1100nm.

NV200 Nano Volume Spectrophotometer

Download Nano Volume NV200 Brochure

Product Description

“One drop is enough” – Analysis of Ultra-Low Volumes, using 1 – 2µl, of sample.

The compact NV200 Nano Volume Spectrophotometer is the perfect solution for DNA/RNA and Protein Analysis. The stand-alone instrument has a built-in 7inch Colour Touch Screen with a user friendly operating system which is simple and clear to operate. The analysis of multi-functions include: Nucleic Acid, Protein, Kinetic, Spectrum Scanning, End point and OD600.

The compact NV200 Nano Volume Spectrophotometer, typically using 1 – 2µl for a measurement, is the perfect solution for DNA/RNA and Protein Analysis. The Xenon Light source, combined with a CCD Detector,  provides a fast and stable measurement response of  3 seconds. The stand-alone instrument has a built-in 7inch Colour Touch Screen with a user friendly operating system which is simple and clear to operate.



  • The NV200 Nano Volume Spectrophtometer for Analysis  Ultra-low Volumes of sample.The perfect solution for DNA/RNA and Protein Analysis. The Large Touch Screen Sensitive screen offers high degree of automation requiring minimal key depressions to start analysis.
  • One Drop is ENOUGH for AnalysisInstruments can be used with conventional 1cm cell holder or Nano volume. 1ul to 2ul is enough sample for FULL analysis

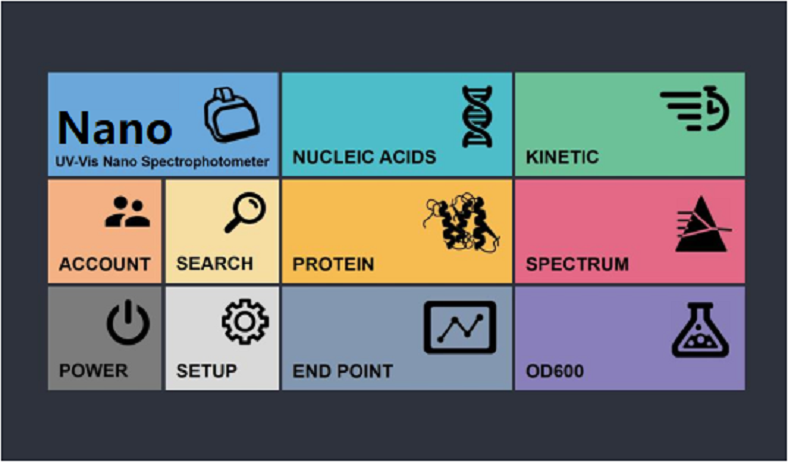

  • The HOME SCREEN is a  Large Touch Screen with FAST RESPONCE TIME.\Sensitive 7inch touch screen offers high degree of automation requiring minimal key depressions to start the analysis.

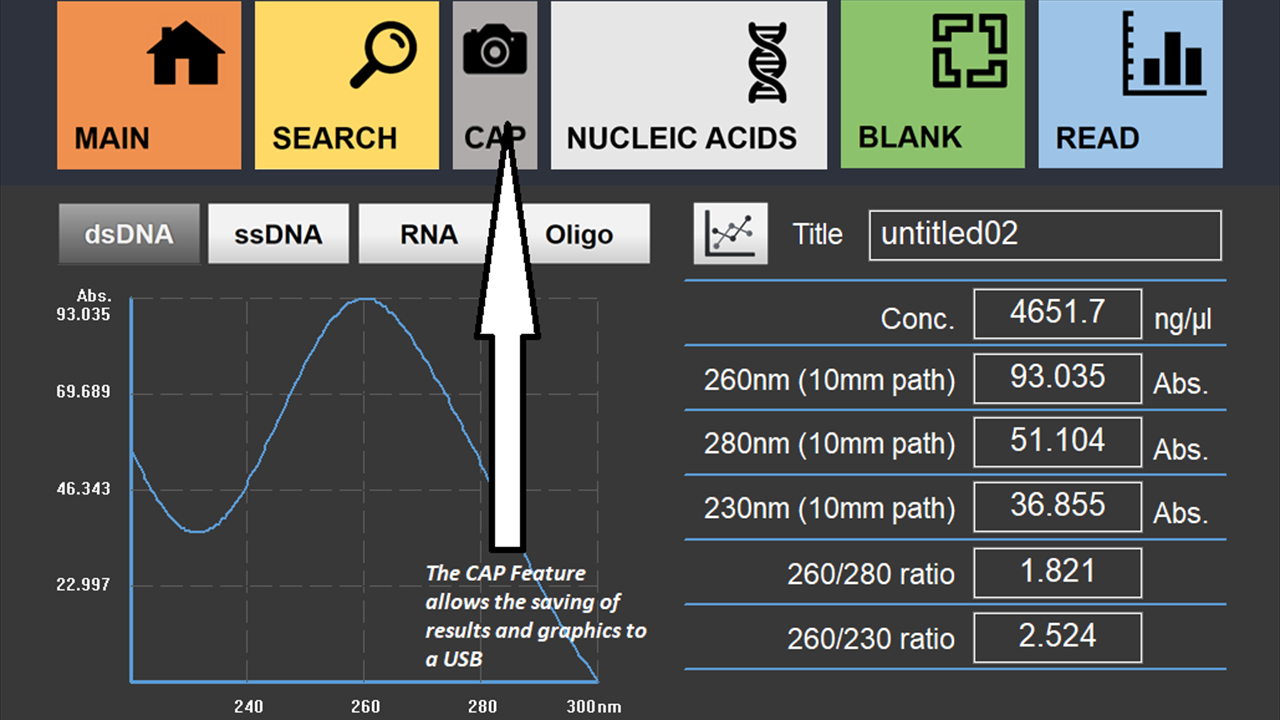

  • CAP is a Screen Dump Feature Saving the Graphics and the Sample Data on a USB

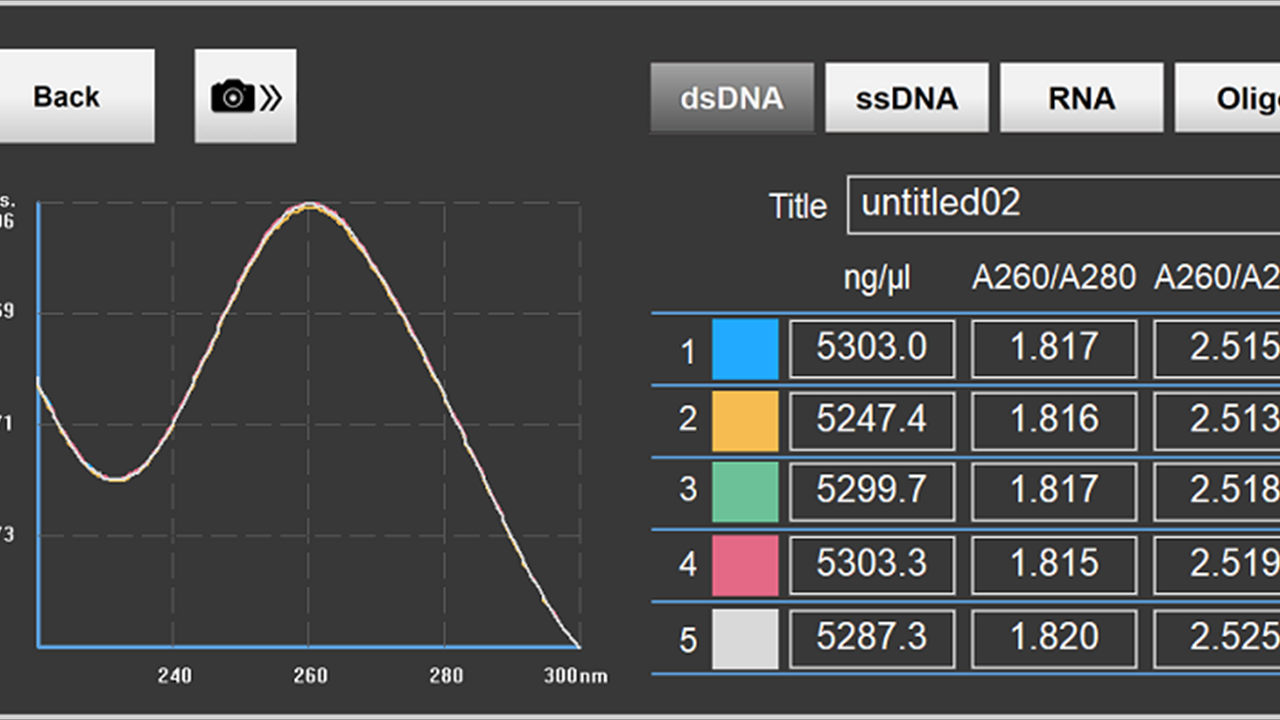

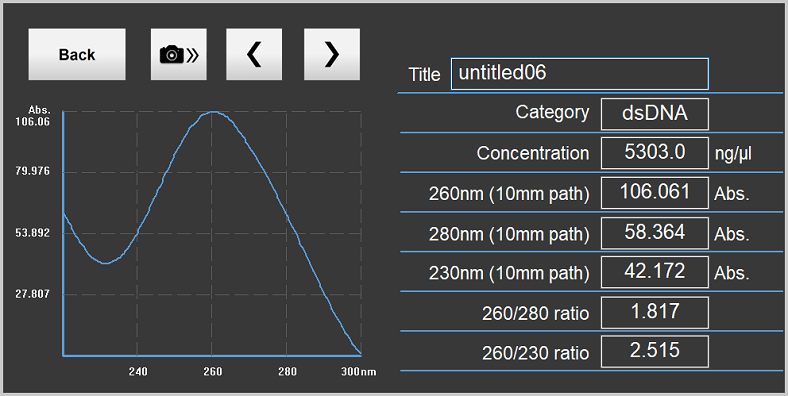

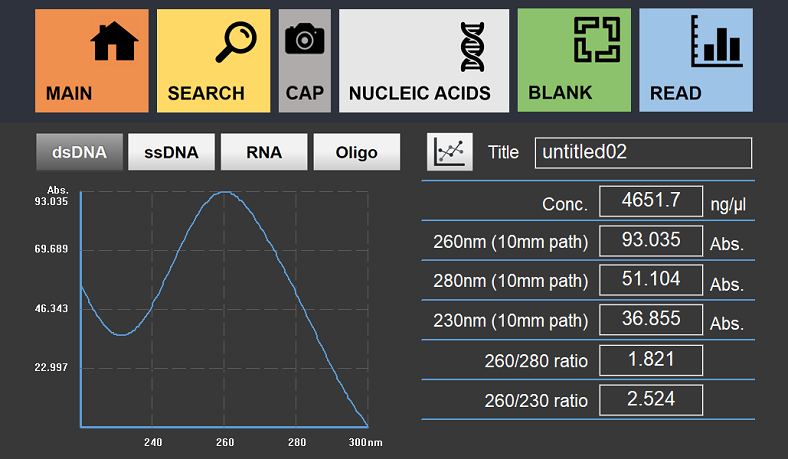

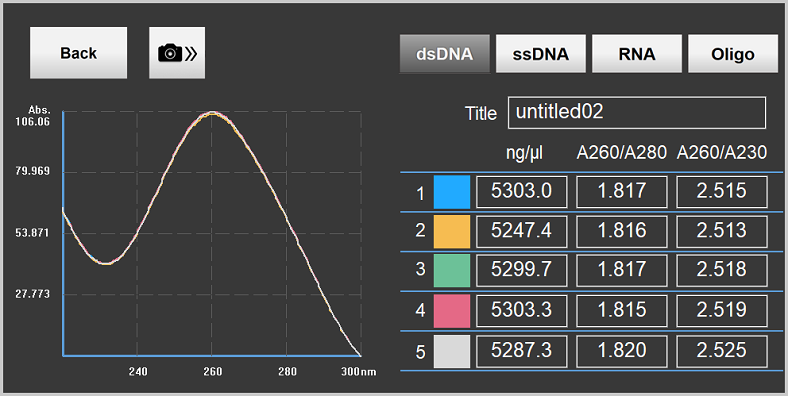

  • Double Stranded DNA Samples.dsDNA

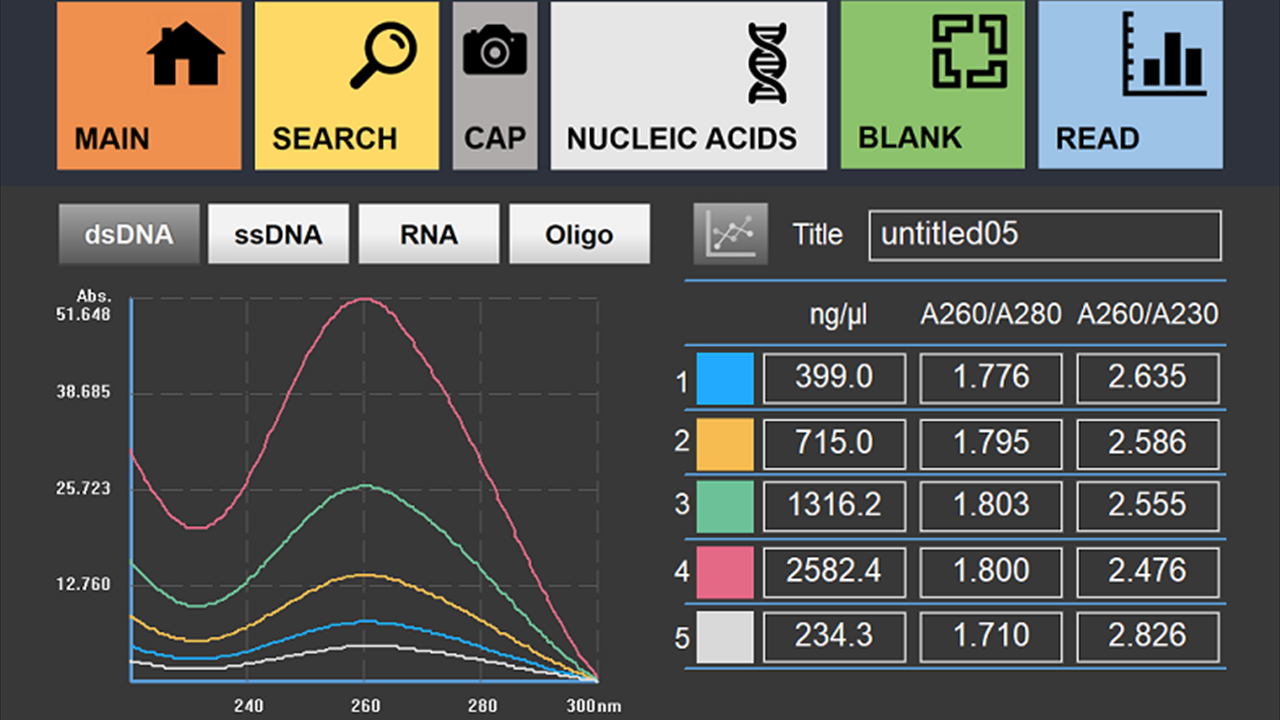

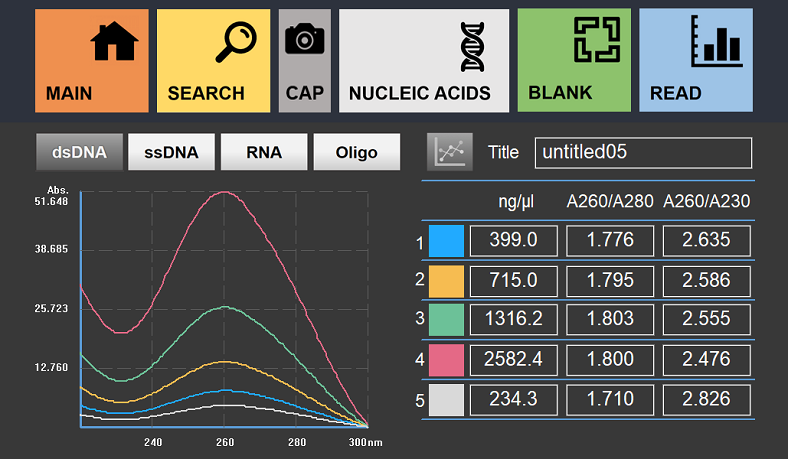

  • Nucleic Acid Analysis Data Overlay

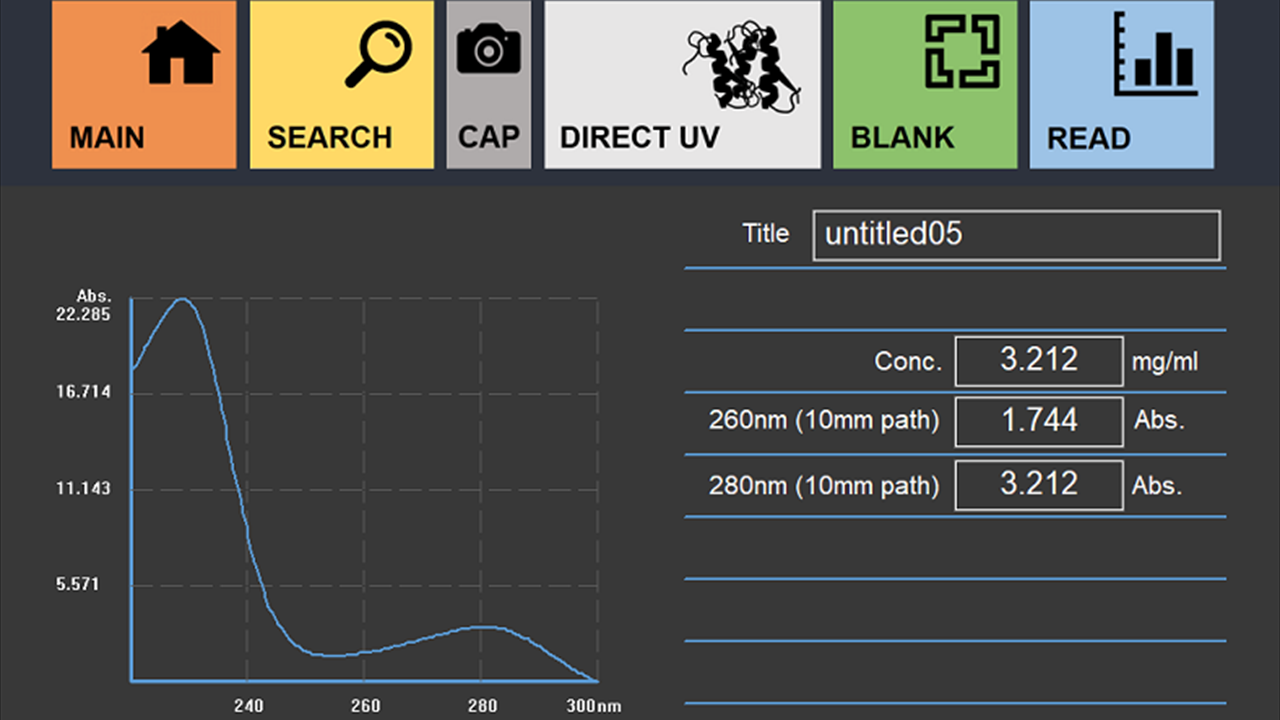

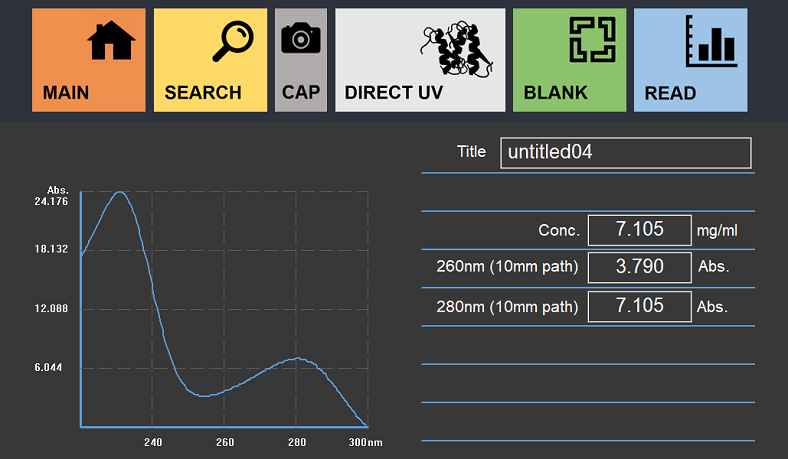

  • Direct UV Analysis

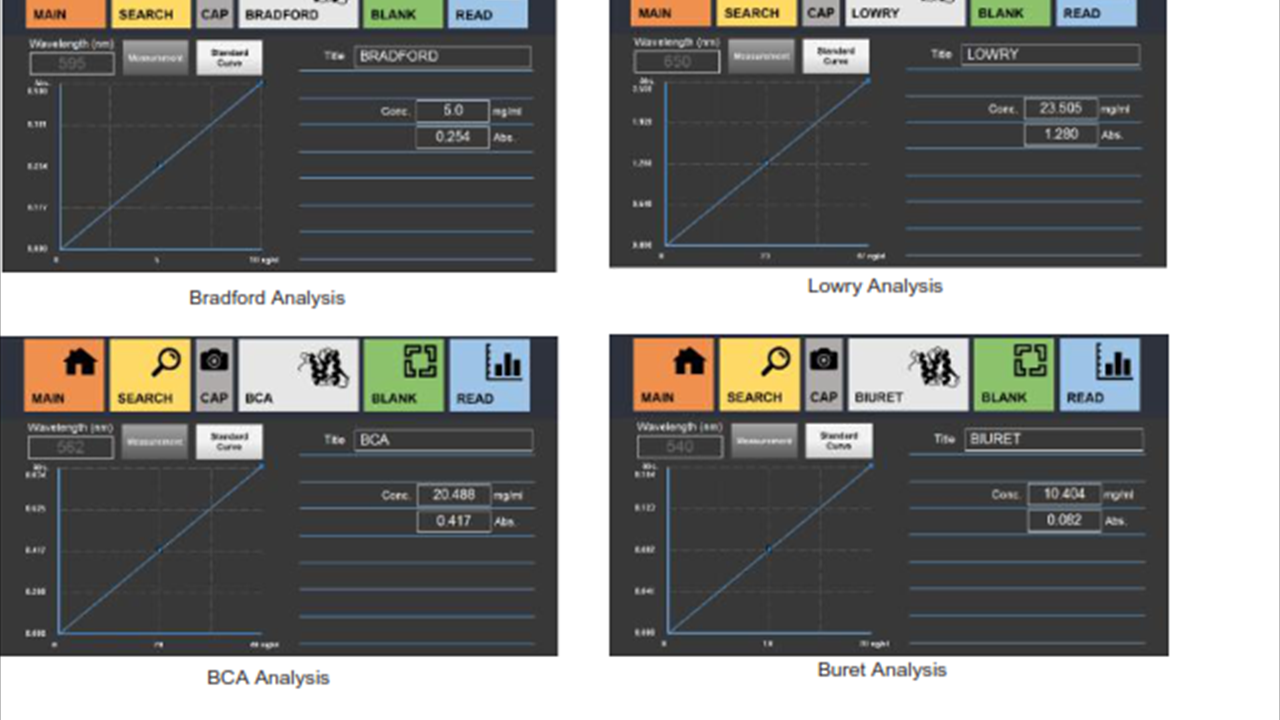

  • Options for Protein Analysis



                    General Specifications



Light Source

Xenon Lamp

Detector

CCD (2048 Pixels)

Wavelength Range

190 – 1100nm

Wavelength Accuracy

± 1.0nm

Spectral Resolution

0.3nm

Dimensions

22 x 28 x 22cms

Weight

3Kg

Power Supply

120-240v 50-60Hz

Power Consumption

80 – 100 Watts



           Specifications with Cuvette



Beam Height

8.5mm

Absorbance Range

0.002 – 2.0Abs

Measurement Time

3 Seconds

Path Length

10mm



     Specification with Nano-Volume



Absorbance Precision

1% @ 100ng/µl

Absorbance Range

0 – 200Abs (10nm Equivalent)

Detection Limit

2ng/µl (dsDNA)

Maximum Concentration

15000ng/µl (dsDNA)

Measurement Time

5 Seconds

Minimum Sample Volume

1µl

Path Length

0.01 – 1.2mm (Auto-Ranging)
