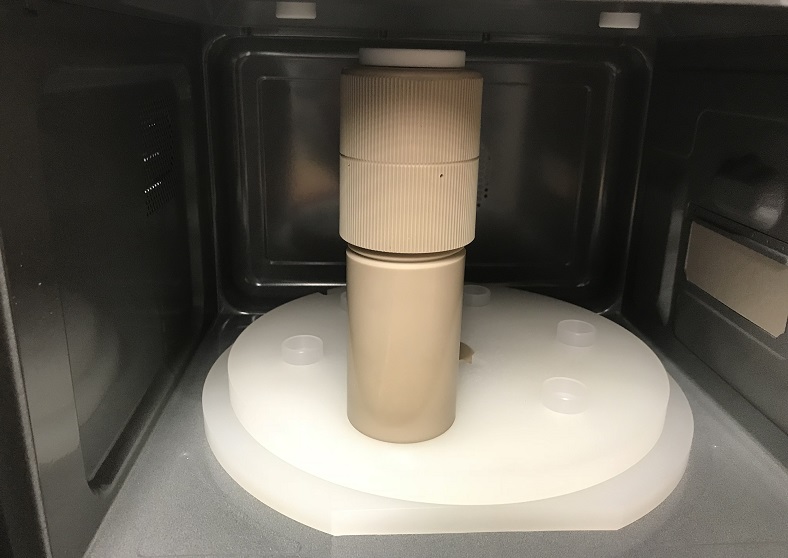

Micro-Wave Digestion 003Micro-Wave Digestion System 8250Micro-Wave 002Micro-wave 001Rotar with 10 sample vessels

Micro-Wave Digestion 8200

Elemental techniques such as AA, ICP-OES, ICP-MS or XRF. Most of these techniques, require the sample to be dissolved prior to analysis. As analysis techniques continue to improve and become more sensitive, an even greater emphasis is being placed on methods of  sample preparation that avoid risks of contamination.

Microwave digestion is now recognised world wide as the most robust sample prep technique for AA, ICP-OES, or ICP-MS analyses. Microwave digestion involves combining the sample matrix and acids in a pressurized container and elevating the solution past the boiling point of the acid which significantly accelerates the digestion. Given the high operating temperatures and pressures, microwave digestion can be applied to a wide range of samples particularly environmental, agricultural, soils, food, feed, pharmaceutical products to name but a few. Thus producing a fully uniform dissolved sample simply, quickly and safely.

Micro-Wave Digestions Brochure Series 8200

Product Brochure

Categories: , Tags: , , , , , ,

Product Description

Micro-Wave Digestion Model Range 8200

PG Instruments manufactures a comprehensive range of Micro-Wave Digestion system which offer sample preparation of  SIX, EIGHT, TEN OR TWELVE Samples each of up 100ml at one time with a user selectable power of up to 1000 Watts.

The 8200 range of Microwave Digestion instruments has the following part numbers:

  • 8200-8206 for the preparation of up to SIX samples at one time.
  • 8200-8208 for the preparation of up to EIGHT samples at one time.
  • 8200-8210 for the preparation of up to TEN samples at one time.
  • 8200-8212 for the preparation of up to TWELVE samples at one time.

Our model 8300 range offers a sample capacity available up to 50 samples of 50ml per sample with a user selectable  Micro-Wave Power of up to 3000 watts. The 8200 and 8300 range has been specifically developed for use with Atomic Absorption Spectrometers, Inductively Coupled Plasma OES and ICP-MS, Flame Photometers, UV Visible Spectrophotometers, Atomic Fluorescence, XRF to name but a few, for fast and easy sample preparation.

The 8200 range of Microwave Digestion Systems was are simple to use, have an Administration mode, 10 pre-set analytical programs for samples such as foods, waters, agricultural products, medicines, soils, sediments, oils, biological and botanical materials and a further 255 programs for the chemist to use for his own samples.

The method of Micro-Wave Digestion is the very versatile and has been well proven. It allows variations in reagents and methodology, making it ideal for a variety of matrices and elements. The variability of this method also requires a basic understanding of digestion chemistry.

Benefits of Microwave Assisted Digestion

• Cleanliness of preparation environment

• Reproducible digestion,

• Improved QA/QC

• Reduces skill level as a factor

• Greatly reduces preparation time

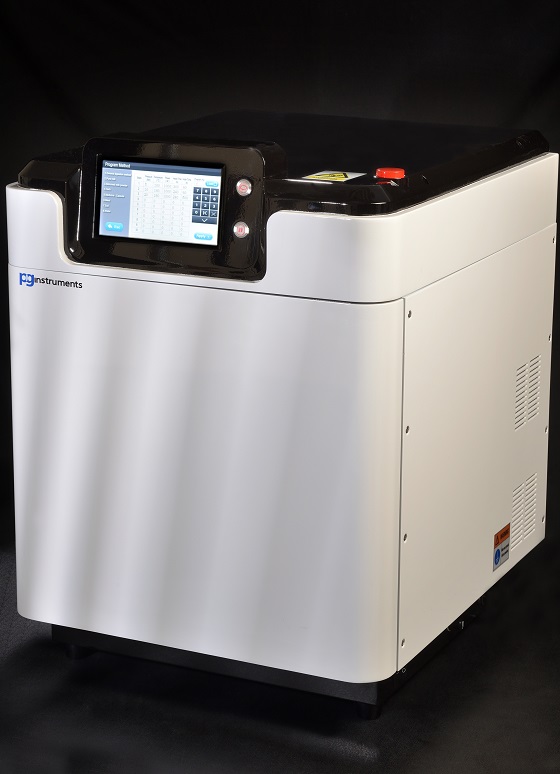

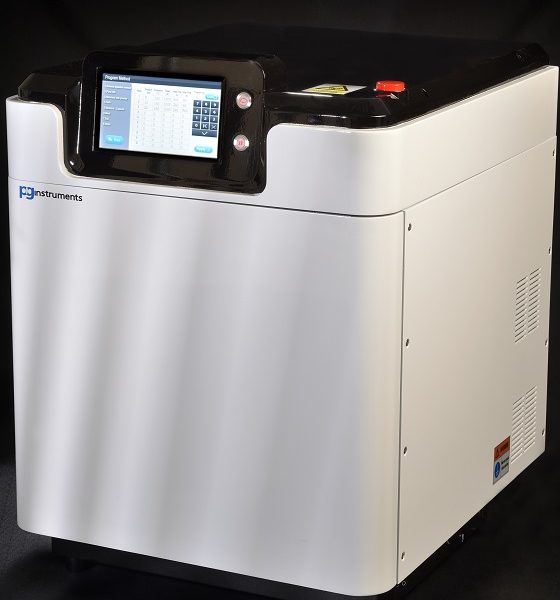

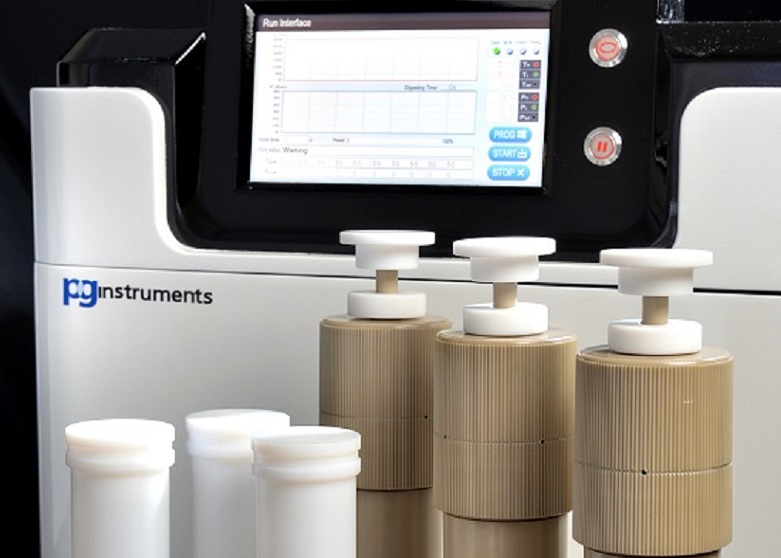

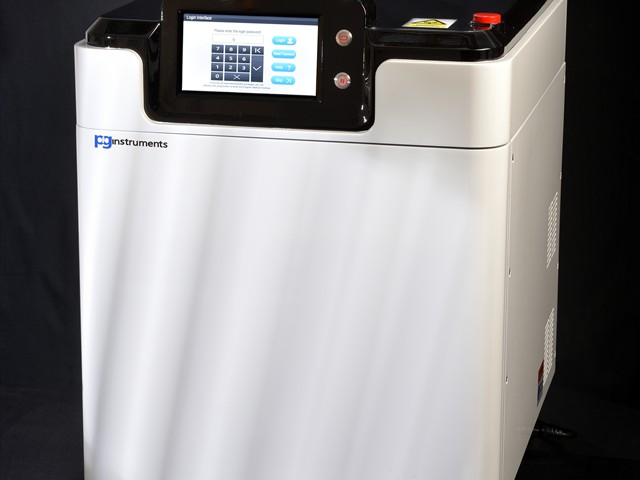

  • PG INSTRUMENTS MICRO-WAVE DIGESTION SYSTEM SERIES 8200Available with 6, 10 and 12 Quick Assembly Vessels of 100ml volume.

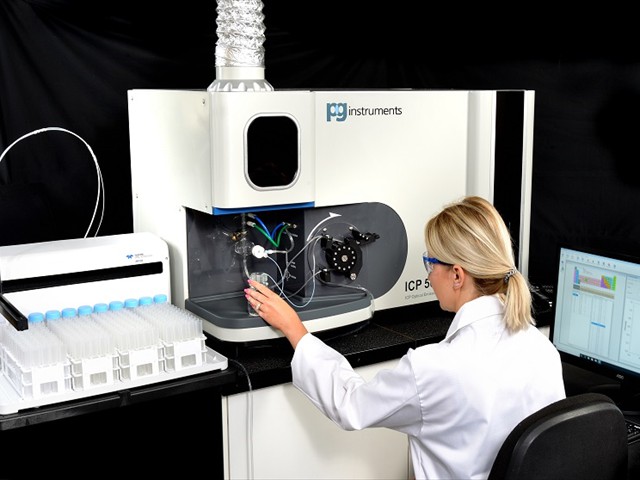

  • DESIGNED FOR USE WITH ICP-OES AND ICP-MS SYSTEMSEspecially designed for PG Instruments ICP5000DV

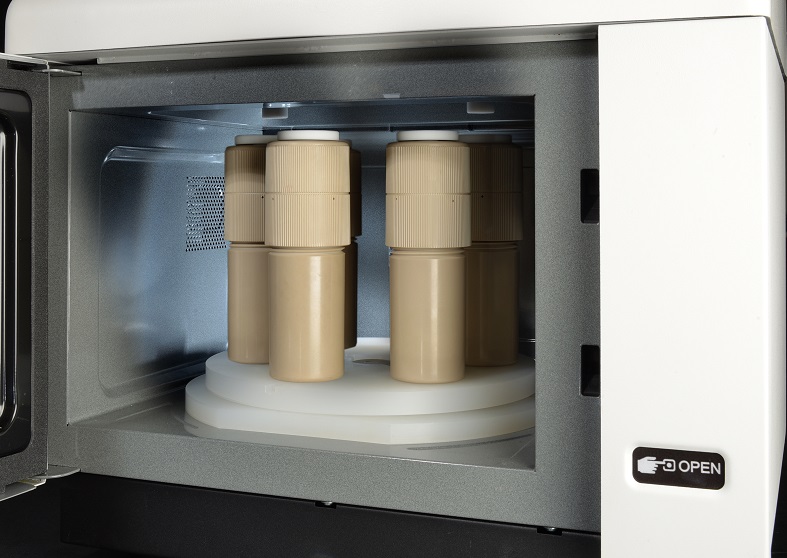

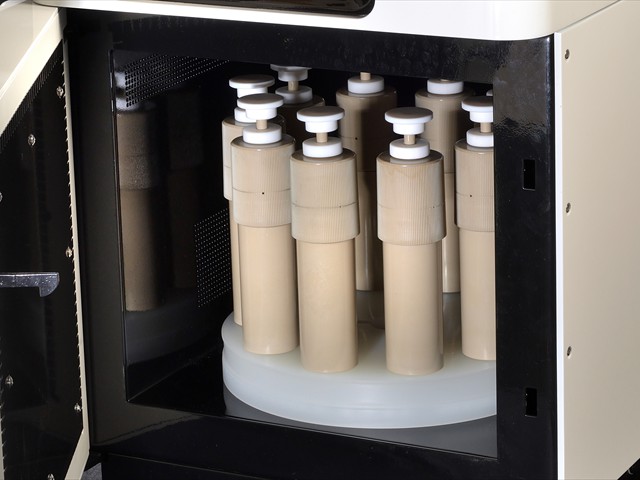

  • INNER VESSEL ROTARShowing Model 8200-8210 with 10 Vessels.

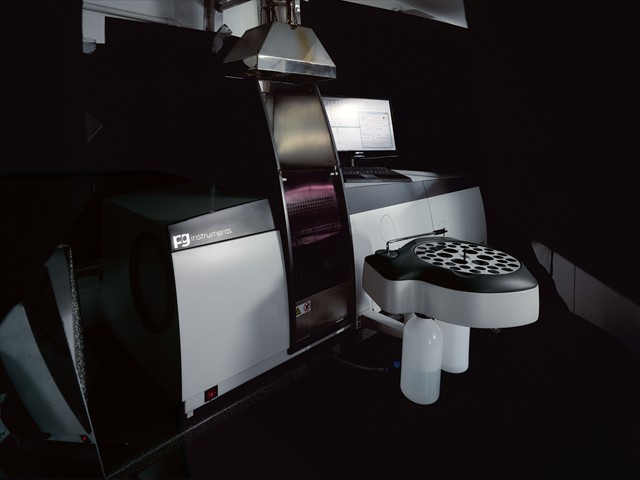

  • DESIGNED FOR USE WITH ATOMIC ABSORPTION SPECTROMETERSEspecially designed for PG Instruments AA500

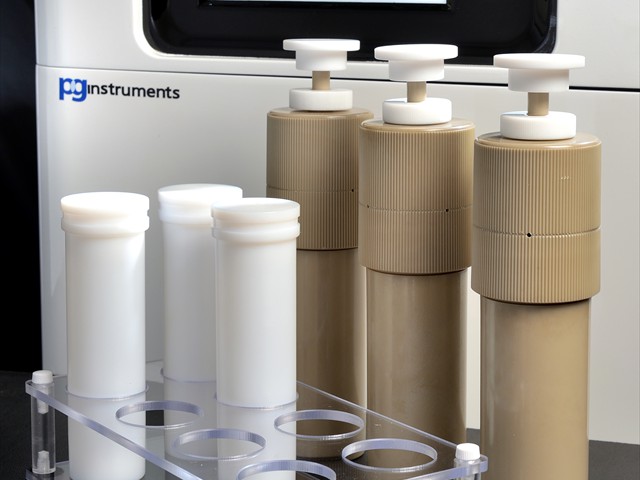

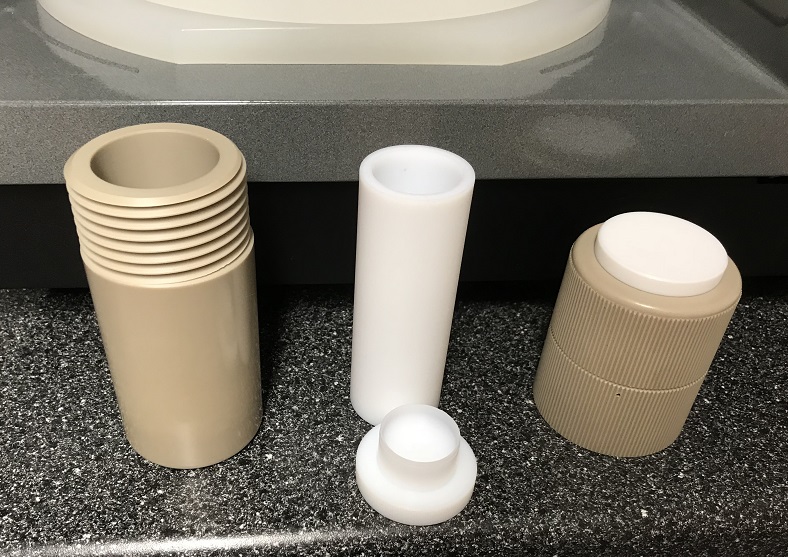

  • INNER AND OUTER VESSELS.Vessels are manufactured from PTFE and CFM

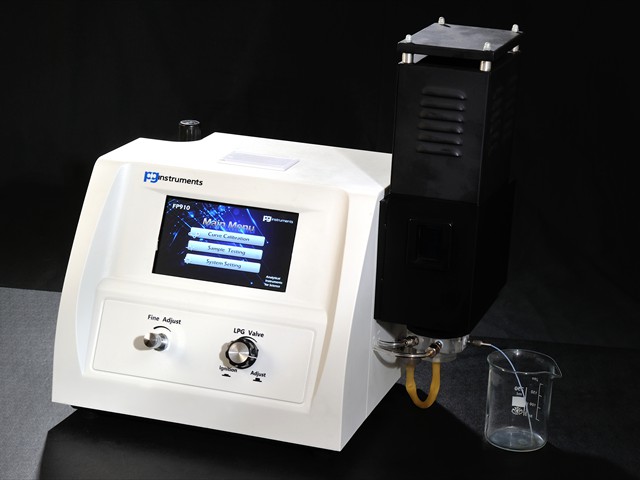

  • DESIGNED FOR USE WITH FLAME PHOTOMETERSEspecially designed for PG Instruments FP910

Specification for Model Range 8200

Number of Samples 6. 8, 10 OR 12
Chamber Square Oven Chamber Design
Maximum Sample Volume 100ml
Pressure Control Full Scanning
Pressure Measurement Full Scanning
Pressure Measurement Touch Free
Temperature Control Full Scanning
Temperature Measurement Contactless IR Sensor
Vessel material Inner Vessel Teflon, Outer Vessel Peak
Maximum Working Pressure 5 MPa
Maximum Working Temperature 250°C
Temperature Limit 300°C
Chamber Volume 60 Litres
Display 8 inch Touch Colour Screen
Pressure Control Range 0 – 5MPa (0 – 60kg/cm2
Pressure Control Accuracy ±0.01MPa ).1Kg/cm2
Microwave Power 1000W (0 – 1000 Adjustable)
Microwave Frequency 2450MHz
Rotation Mode One Direction 360° Continuous Rotation
Microwave Leakage <5Mw/cm2
Power AC220V 10A 50/60Hz
Dimensions 490 x 560 x 630mm
Weight 47Kg
