Flame Photometer – FP910

The FP910 is a Digital Flame Photometer, Microprocessor Controlled, for the quick and simple determination of Sodium, Potassium, Calcium, Barium and Lithium in one single aspiration. The instrument has a 7-inch Embedded Colour Touch Screen offering colour graphics such as calibration graph and data, simultaneous analytical results, selection of elements,  automatic calculation of curve coefficients, concentration unit selection etc. Language Selection (currently English, Turkish, Polish, Russian and Portuguese)

FP910 Brochure

Product Brochure

Product Description

FP910 Flame Photometer



The FP910 is a Digital Flame Photometer Microprocessor Controlled for the quick and simple determination of Sodium, Potassium, Calcium, Barium and Lithium in one single aspiration. System has a 7-inch Embedded Colour Touch Screen offering colour graphics such as calibration graph and data, simultaneous analytical results, selection of elements, concentration unit selection etc, Automatic calculation of curve coefficients. Language Selection (currently English, Turkish, Polish, Russian and Portuguese – More to follow) Flame out safety protection sensor. Direct Printing using integral thermal printer. USB interface to connect with PC for Data Collection Software. Automatic selection of filters. Up to 12 point calibration capability.

TWO models are available, namely FP910-4, which allows analysis of FOUR Elements – Sodium, Potassium, Calcium and Lithium and the FP910-5 for the analysis of FIVE elements – Sodium, Potassium, Calcium, Lithium and Barium.

FP910 Touch Station-Pro data collection software. Allows for data and calibration factors and data to be stored on to a Windows Based PC. Full control of the basic collection of data from the Flame Photometer for models Fp910-4 and FP910-5 is available. The software is pre-loaded on to a 10 inch Windows Tablet operating in Windows 10 with a touch screen. FP910 Touch Station Pro will allow the exporting of data in Excel Format, MS Word and PDF. USB Interface and Tablet Stand are included.



Here are Some Unique Features of the PG Instruments

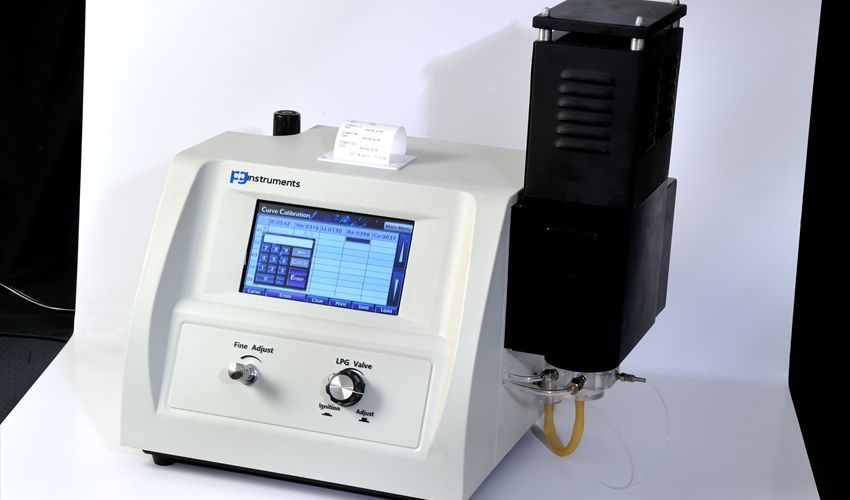

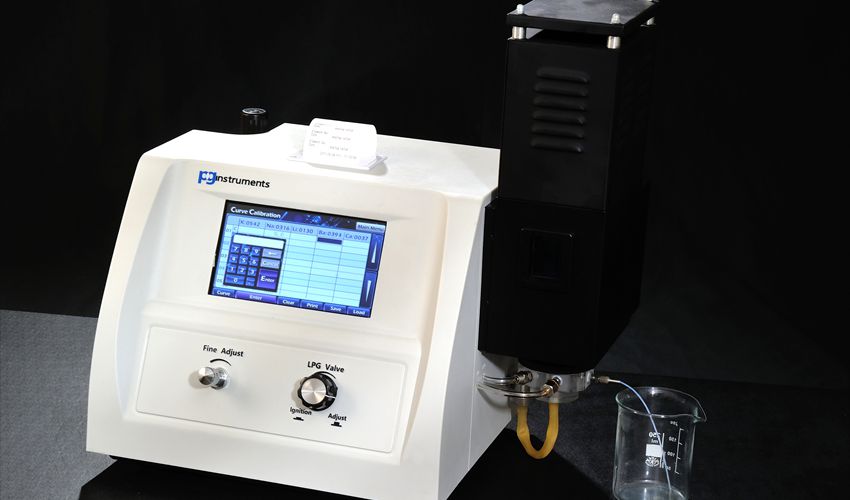

FP910 Flame Photometer

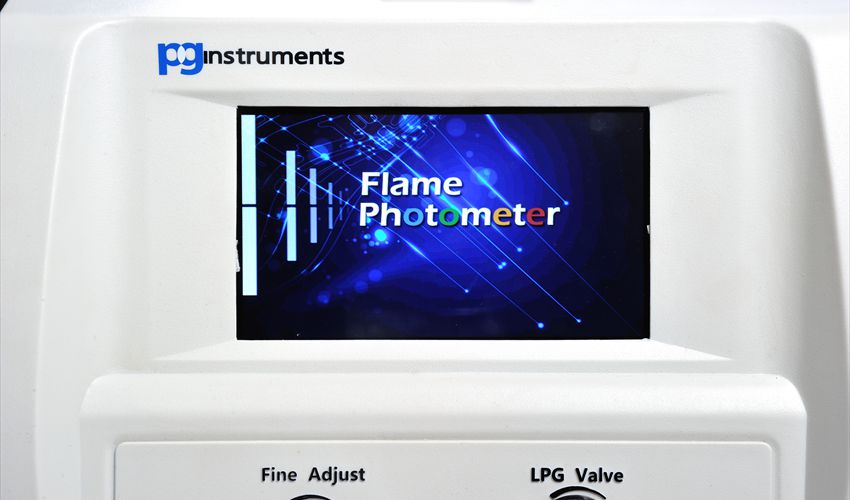

  • PG Instruments Flame Photometer FP910 Wecome Screen.

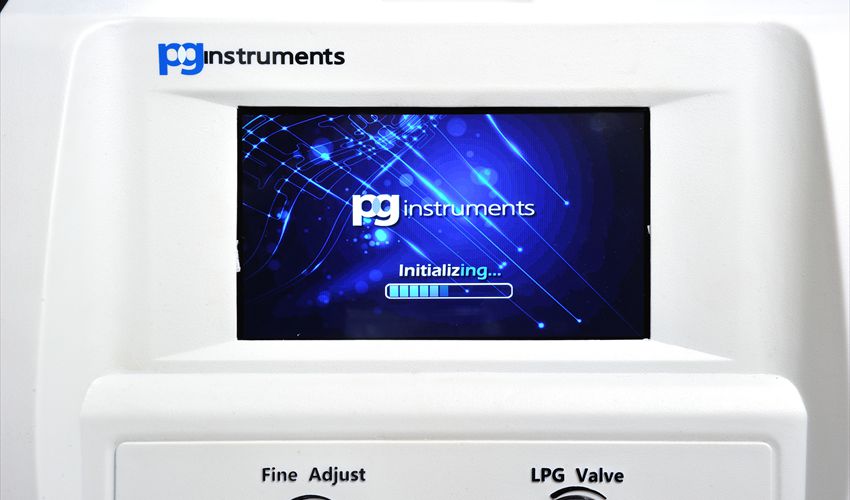

  • FP910 Software Initialisation

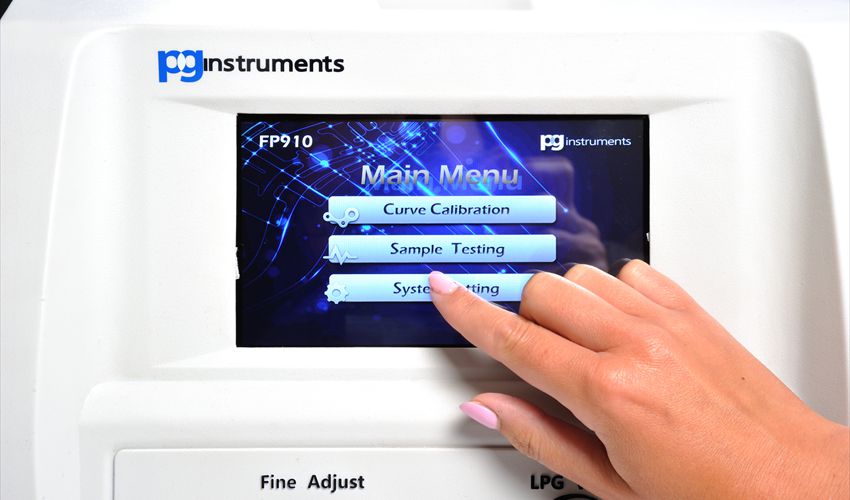

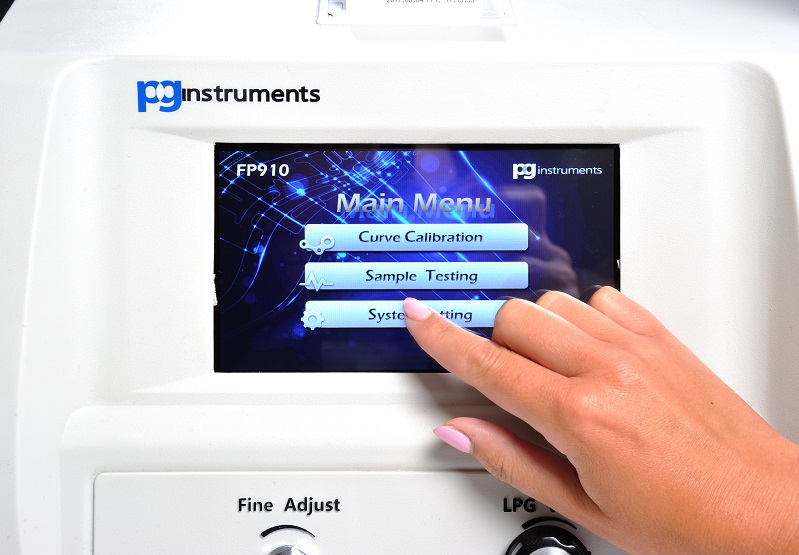

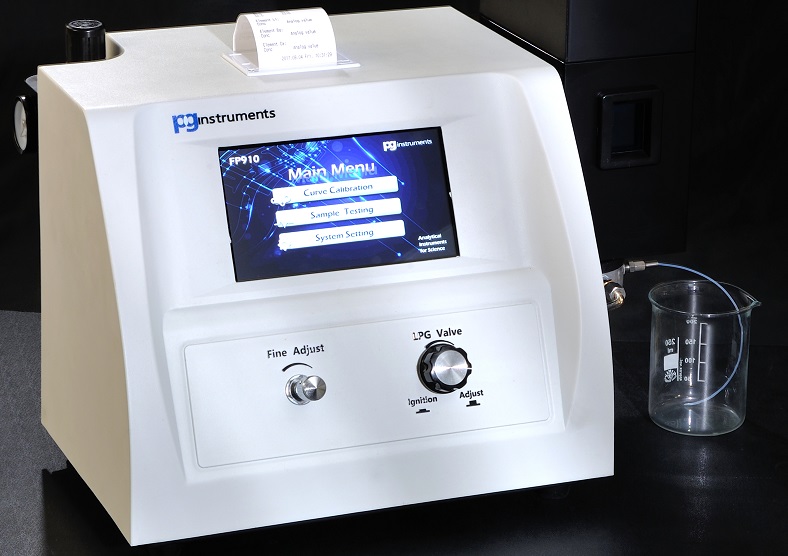

  • Main Menu Screen With Simple Touch Screen Task Selection

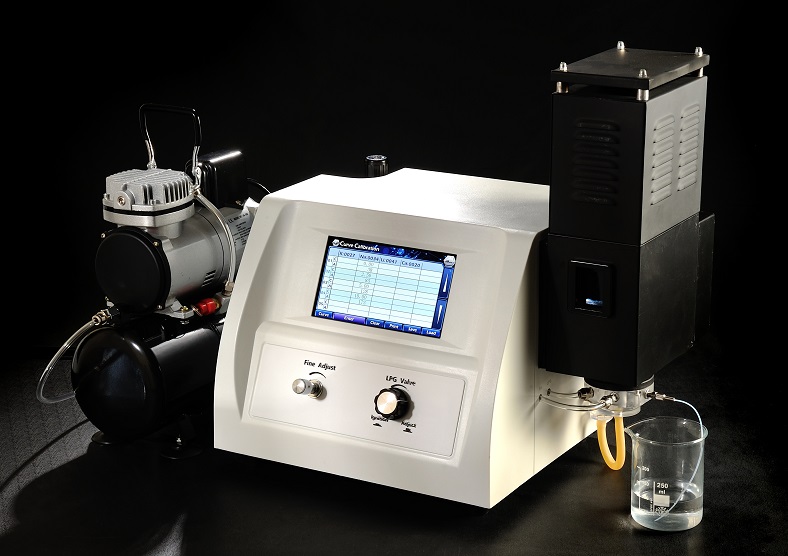

  • Curve Calibration Data Input ScreenALL Parameters can be entered by use of the Colour Touch Screen

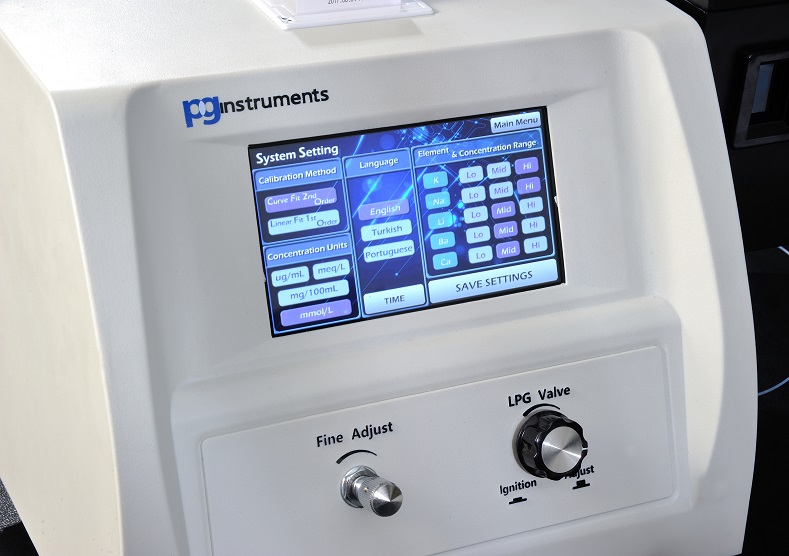

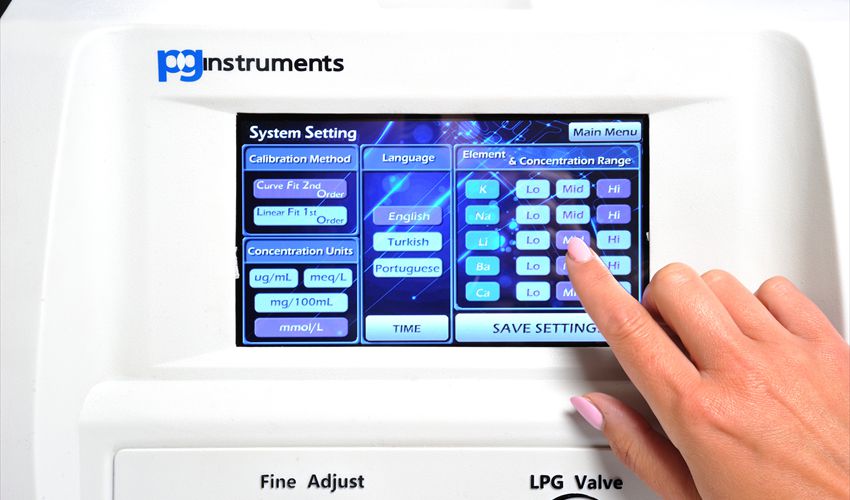

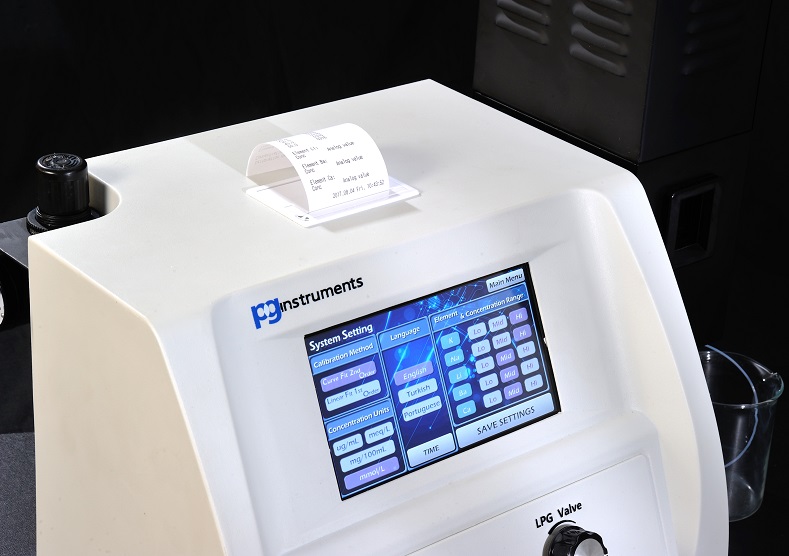

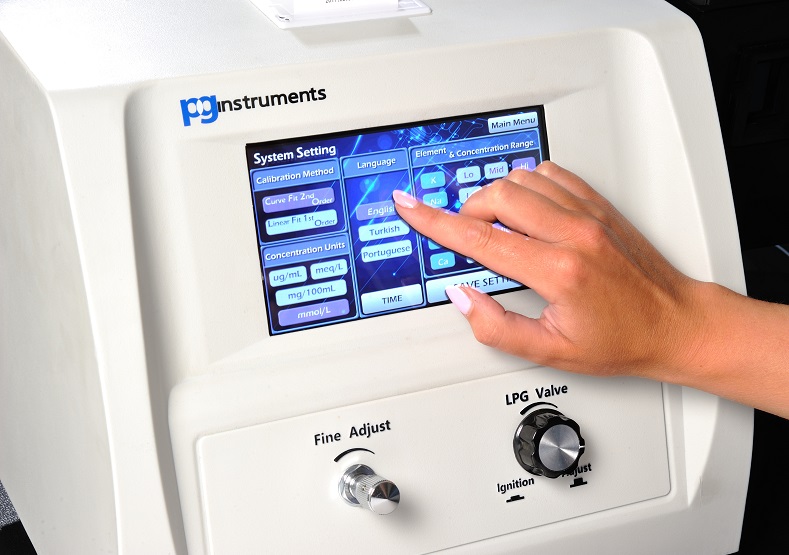

  • Section of Language, Concentration Units, Calibration Curve Parameters and Concetration Values.Simply entered via the Touch Screen.
  • Sample data and results are Printed via a embedded printer unit.



Analytical Specification

Detection Limits

Element mmol/l ppm (µg/ml)
Potassium (K) ≤0.004 ≤0.156
Sodium (Na) ≤0.008 ≤0.184
Lithium (Li) ≤0.015 ≤0.104
Calcium (Ca) ≤0.050 ≤2.00
Barium (Ba) ≤0.044 ≤6.03

Linear Error

Element mmol/l
Potassium (K) ≤0.005
Sodium (Na) ≤0.03
Lithium 9Li) ≤0.021
Calcium (Ca) ≤0.075
Barium (Ba) ≤0.066

General Specification

Reproducibility ≤2%
Response Time <8 seconds
Sample Uptake Volume (ml) <6ml/minute
Printer Integral Thermal Printer – Optional
USB Data Output Available on ALL FP910 Models
Display 7-inch Colour LCD Touch Screen
Languages English – Portuguese – Turkish
Gases LPG, Natural Gas, Propane Butane
Dimensions 400 x 250 x 500mm
Weight 8Kgs

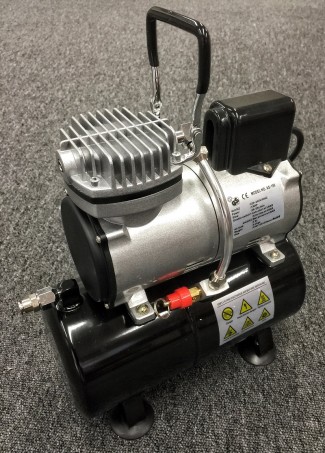

Specification for Air Compressor

Type Single Cylinder Piston Compressor with air tank – OIL FREE
Power 1/6 HP
Speed 1450 – 1700 rpm
Air Output (litres/minute) 20-23l/min
Adjustable Pressure Range 0 – 6 Bar
Air Tank 3 Litres
