T110+ Spectrophotometer

Competitively Priced – High Performance Dual Monochromator – Double Beam Spectrophotometer with ultra low stray light.

Downloads

Product Brochure

Qualification Kit

UVWin GLP Software

Product Description

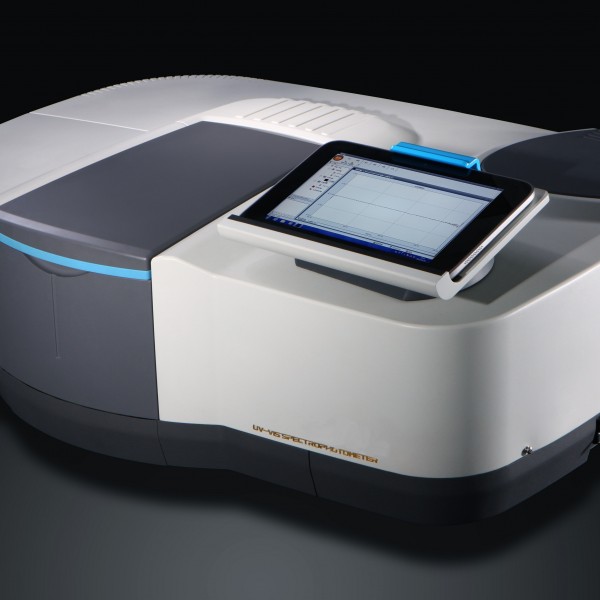

T110+ Double Monochromator UV-Visible Spectrophotometer

The T110+ Series Spectrophotometer incorporates dual monochromator technology making it well suited to even the most demanding of applications in all areas of UV-Visible Spectroscopy including:

  • Pharmaceutical Industry
  • Material Science
  • Food Safety
  • Biotechnology
  • Research



Wireless instrument control and data acquisition can be achieved from a Table PC using Wi-Fi technology allowing the analyst to move freely around the laboratory whilst also keeping track of sample measurements. The T110+ is fully controlled via a GLP Version of UV-Win Software.

The Optical Design for the T110+ gives extremely low stray light characteristics (0.00004% T NaI, 220 nm) which gives the instrument a Large Photometric Range of -6.0 to +6.0Abs units. Measurements at deep ultra-violet wavelengths can also be achieved with use of Nitrogen purged optics.

The instrument can be optically configured to suit the needs of the sample by means of a continually adjustable slit for precise control of spectral resolution and beam size adjustment by means of an attenuating wheel. Precise wavelength accuracy is ensured by an integrated Mercury Emission Lamp used for automatic correction of spectral wavelength deviation.

A wide range of specialised accessories are available to suit the specific requirement of the sample, these include:

            • Both 60mm and 150mm Integrating Sphere for Diffuse reflectance measurements.
            • Absolute, and Specula reflectance measurements accessories.
            • Polarizing Optics
            • Thermostatic Cell Holders for temperature control.
            • Various long and short path length cell holders.
            • Automated cell changers for both sample and reference beams.
            • Tablet dissolution accessory for pharmaceutical Quality Control

DETAILED SPECIFICATION



Optical System      Dual Monochromator  – Double Beam Optics.
  • D2 Lamp – UV Region
  • Lamp – Visible Region
  • Hg Lamp – Wavelength Calibration
Wavelength Range     185 – 900nm
Wavelength Accuracy     ±0.2nm
Wavelength Reproducibility     ≤ 0.1nm (D2 lamp)
Spectral Bandwidth     0.1 –5.0nm Continually Adjustable
Stray Light
  • ≤0.0001%T (NaI , 220nm)
  •  ≤0.00004%T ((NaNO3, 360 nm)
Photometric Accuracy
  • ±0.004A @2.0 A
  • ±0.003A @1.0A
  • ±0.002A @0.5 A
  • ±0.3%
Photometric Reproducibility
  • ≤0.002A @2.0 A
  • ≤0.0008A / 1.0A
  • ≤0.0004A/ 0.5A
  • ≤0.1%
Baseline Flatness      ±0.0008Abs
Noise
  • 0%T Noise:=0.01%
  • 100% T Noise:=0.1%
Communication Port      USB or RS232C or WiFi
