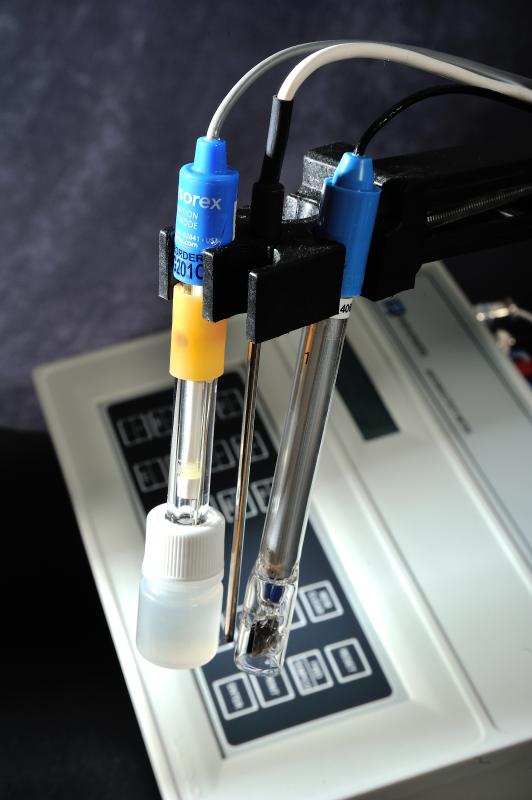

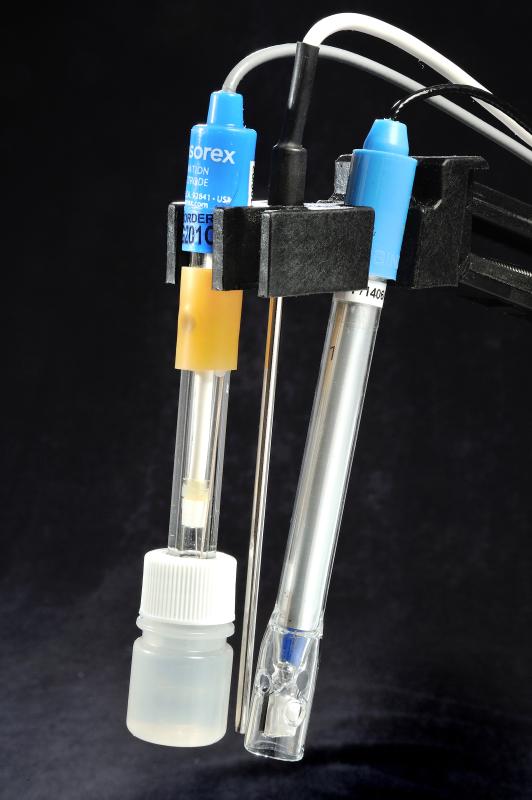

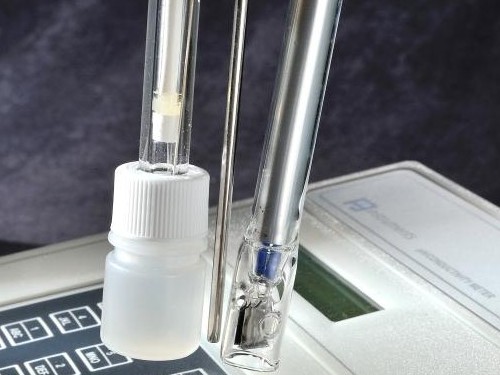

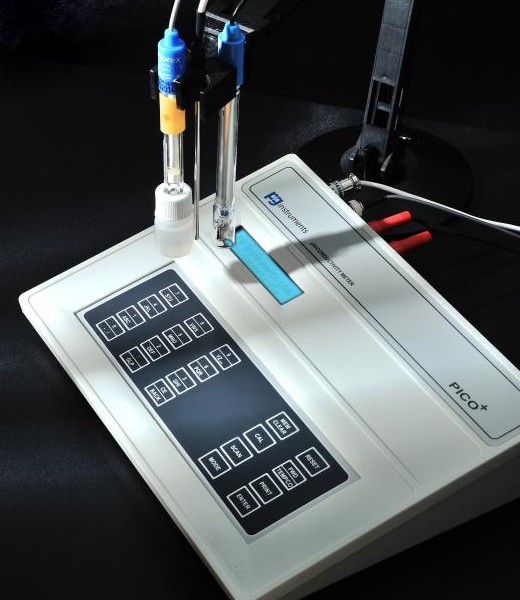

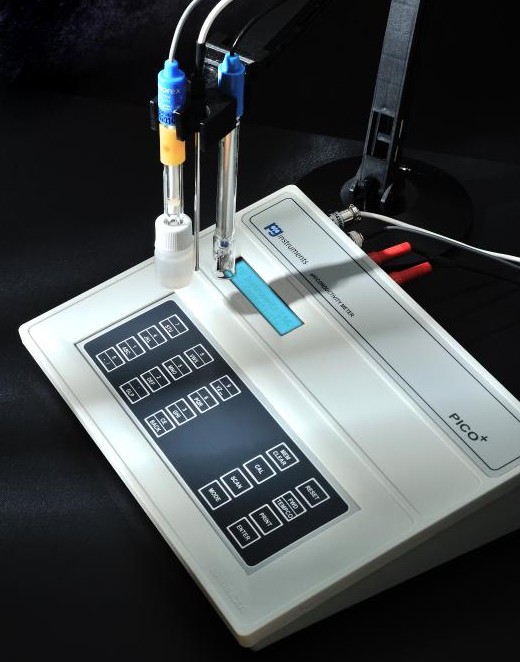

Combined pH & Conductivity Meter with pH, Conductivity and Temperature ProbesTouch Keypad and Electrodes for pH and Conductivity MeterpH Electrode, Conductivity Electrode and Temperature Probe

pH and Conductivity Meters

The 16 series of combined pH and Conductivity Meters consist of compact bench top system measuring pH, mV and Conductivity. The system has TWO modes of operation namely Standard Mode and GLP mode. In the GLP mode 40 data readings can be stored printed and scanned on display. Also in GLP mode additional entries of sample name and ID name can be stored. The Conductivity system calculates the conductivity at the reference temperature of 25 +/- 0.1 degrees centigrade.

Downloads

Product Brochure

Product Description

The range of combined pH and Conductivity Meters consist of compact bench top system measuring pH, mV and Conductivity. The system has TWO modes of operation namely Standard Mode and GLP mode. In the GLP mode 40 data readings can be stored printed and scanned on display. Also in GLP mode additional entries of sample name and ID name can be stored. The Conductivity system calculates the conductivity at the reference temperature of 25 =/- 0.1 degrees centigrade.

The following parts are supplied as standard with this unit:

Combined pH and Conductivity Meter comprising of:

ONE Glass Bodied pH Electrode

ONE Constant Conductivity Electrode

ONE Resonating Temperature Detector

ONE Electrode Stand

ONE Operating Manual

DETAILED SPECIFICATION

Temperature Range 0 to 150 Degrees centigrade
Resolution of Temperature Range 0.1 Degrees Centigrade
Relative Accuracy +/- 0.2 Degrees Centigrade
Sensor Resonating Temperature Detector
Temperature Compensation Automatic  & User adjustable
Display 20 x 2 Line back Lit LCD Display
Keyboard Alphanumeric – splash water proof polyester soft touch keys
Output Printer and PC Connectivity
ENVIRONMENTAL OPERATING CONDITIONS
Temperature Ambient to 45 Degrees Centigrade
Relative Humidity 5 to 90%
Power requirement 220v 50Hz or 110v 60Hz
Dimensions 305 x 220 x 70mm
Weight 2.2 Kgs
pH METER SPECIFICATIONS
pH Range -2.00 to 19.999
Resolution 0.1/ 0.01/0.001pH
Relative Accuracy +/- 0.002 pH
Slope 3 Points 80% to 120%, 5 points 90% to 105%
Sensor Combination pH Electrode
Calibration Auto-Calibration & printout or Calibration Report
mV Range 0 to +/- 1999.9mV
Resolution of mV Range +/- -0.1mV
Relative Accuracy +/- 0.2 mV
SPECIFICATION- Continued
Report Format
  • Report of Selected pH and mV Reading with Temperature
  • Calibration report
  • Data Table & Graph
CONDUCTIVITY METER SPECIFICATIONS
Measuring Range Auto-Ranging 0.1uS/cm to 199.9mS/cm
Resolution 0.01
Accuracy 0.5%
Report Format
  • Calibration Report
  • Report of Selected Conductivity TDS and Salinity Readings
